The perfect equation: Techydem's controller = More Control + Monitoring + Versatility - Cost Techydem offers real-time boat monitoring and control through our control's technology, enhancing safety and convenience. It integrates multiple devices, provides customization, and simplifies boat automation for both technical and non-technical boaters.
Our controller covers a wide range of application: Boat, projects for R&D, University, Hobbyists, Automation, RV,…) with an high level of control and monitoring.
The cost of our controller comes at an unbeatable price for the same level of Inputs + Outputs + Relays + features than the competition and an unbeatable integration level in a single unit.
Top Features Unit with single or dual slave boards
Each slave board have 54 usable pins
8 relays/breakers with 16 Amps per latching relay with voltage and current sensing
19 pins analog inputs for voltage or resistive or any type of sensors
2 shunt inputs for current and voltage monitor
2 RPM inputs
7 load drivers for external power relay, LED lighting
3 PWM outputs
6 dimmable outputs for RGB LED strips
4 pulse counter inputs
2 UART inputs
3.3V & 5V outputs to power external sensors
IMU with 3-Axis compass for magnetic heading, 3-Axis accelerometer, 3-Axis gyro
2 NMEA 2000 connectors, integrated power supply, terminations and gateway
Unit with master board
RaspberryPi 4B with linux Openplotter environment and SignalK
Node-Red:Solid foundation of marine gauges, control, and high-level monitoring

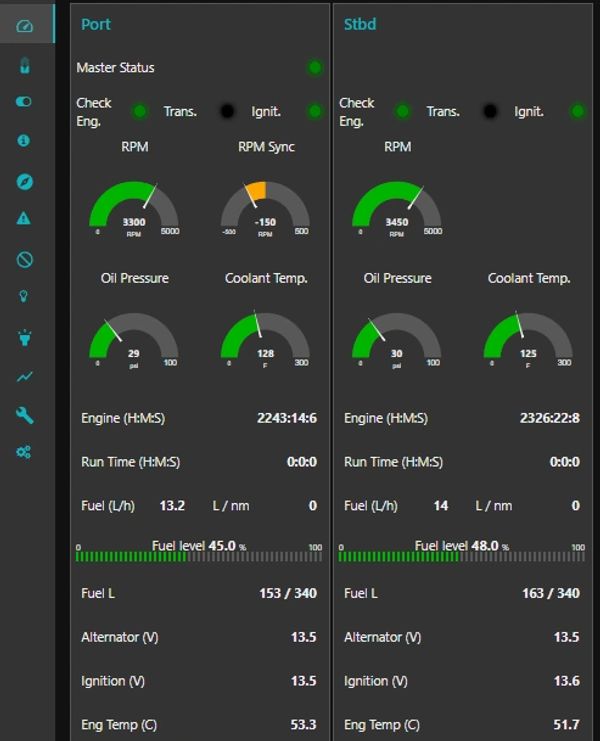

Web-based GUI that can be displayed on tablets (ex iPad), smartphones and laptop
Easy customization of interface
Remote access with alarm & warning
Monitor hundreds of parameters in real time with complex rules, fully customizable
Provides details / log for the detected problems
Real time & historical fuel consumption to see optimal cruise speed
Trim tab control
Built-in configuration software and diagnostics (ex: NMEA 2000)
Main advantages
Monitor and control any equipement in the boat such as engines, electrical systems, pumps, blowers and others
Integrate into a single unit the analog input converters, RPM,shunt, relays, N2K gateway, CPU, Software, IMU sensors, LED drivers, WIFI, …
Open source environment with Node-Red Software and its JavaScript allows customization of the Web based GUI and all the functional operation and rules.
Unique master status indicator with hundreds of rules to monitor your system based on your needs
Integrate into a single unit the analog input converters, RPM,shunt, relays, N2K gateway, CPU, Software, IMU sensors, LED drivers, WIFI, …
2x to 4x less expensive than competition
Less wiring, less devices, less power
Less boat bulkhead area
Enclosure is IP65 rated
Low power consumption of 0.5A
Pricing for pre-order now
Master unit with single slave board: 1599$ CAD
Master unit with double slave boards: 2199$ CAD
For expansion into a larger solution: - Slave unit with single slave board: 999$ CAD - Slave unit with double slave boards: 1599$ CAD
Fuel flow sensor: 180$ CAD (models from 20 HP to +350 HP)
Pre-wired connectors (useful for butt connections): contact us for pricing
Customization and personalized services for none-geek boaters: contact us for pricing
